SVL75-3
Call for Pricing

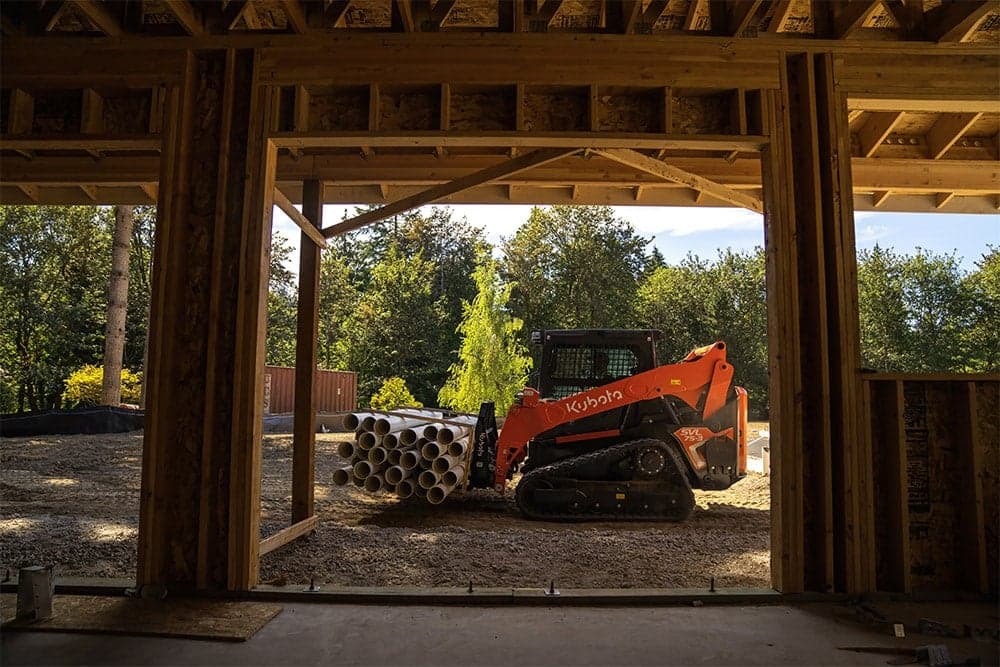

When you’re looking for comfort, practicality, and versatility, you can’t beat the experience that the new Kubota SVL75-3 gives you. The SVL75-3 replaces the popular SVL75-2 with a wide range of performance, comfort and productivity features. Still rated at 71.6 horsepower, but with a higher peak torque, the SVL75-3 is suited for whatever you throw in its way – digging, and moving materials, grading, landscaping, or hardscaping. Available as an open or closed cab, the SVL75-3’s side-screen to side-screen width of 36 inches means you’ll have plenty of room to stretch out, and a comfortable operator is a productive one.
Special Offers
Stand Alone Financing Installment Program
Implement Stand Alone Financing
Customer instant rebate for Farmer Veteran Coalition members.
Farmer Veteran Coalition Rebate
*Not Available for National Accounts or Government Customers
LOW-RATE RENTAL BUSINESSES*
Save Up to $5,500 or 0% A.P.R. For Up to 48 Months With 0% Down on SVL Series!**
TRACK LOADERS
$0 Down, 0% A.P.R. for up to 60 Months or Save up to $8,500 on Construction Equipment!
Construction
description can go here...
Specifications
Auxiliary Hydraulic Pressure, psi (bar)
Auxiliary Hydraulics Flow Rate, GPM (LPM)
Bucket Breakout Force, lbf (kg)
Displacement cu. in. (cc)
Ground Clearance, in (mm)
Ground Contact Pressure, psi (kPa)
Ground Pressure, (psi)
Height to Hinge Pin, in (mm)
Horsepower (gross)
Lift Arm Breakout Force, lbf (kg)
Lift Arm Path
Operating Weight, lbs (kg)
Operator Station
Overall Height, in (mm)
Overall Length, in (mm)
Overall Width, in (mm)
Rated Operating Capacity (ROC), lbs (kg)
Tipping Load, lbs (kg)
Track Ground Contact Length, in. (mm)
Track Rollers (per side)
Track Width (standard/wide), in. (mm)
Traction Force, lbf (kgf)
Traveling Speed: High, mph (kph)
Traveling Speed: Low, mph (kph)
Auxiliary Hydraulic Pressure, psi (bar)
3185 (224.0)
Auxiliary Hydraulics Flow Rate, GPM (LPM)
19.2 (72.7) / 29.8 (112.8)
Bucket Breakout Force, lbf (kg)
6191 (2808)
Displacement cu. in. (cc)
203.3
Ground Clearance, in (mm)
11.7 (296)
Ground Contact Pressure, psi (kPa)
Standard: 5.8 (40) / 5.9 (40.7) Wide: 4.7/4.8
Ground Pressure, (psi)
Standard: 5.8/5.9 Wide: 4.7/4.8
Height to Hinge Pin, in (mm)
122.7 (3117)
Horsepower (gross)
71.6
Lift Arm Breakout Force, lbf (kg)
4723 (2142)
Lift Arm Path
Vertical
Operating Weight, lbs (kg)
9190 (4169) / 9420 (4273)
Operator Station
Open cab / closed cab
Overall Height, in (mm)
81.8 (2078)
Overall Length, in (mm)
142.1 (3609)
Overall Width, in (mm)
Vehicle Width Standard Track / Wide Track, in (mm): 65.9 (1675) / 69.1 (1755), Width with Bucket, in (mm): 68 (1727)
Rated Operating Capacity (ROC), lbs (kg)
2490 (1043)
Tipping Load, lbs (kg)
7112 (3226)
Track Ground Contact Length, in. (mm)
56.5 (1436)
Track Rollers (per side)
4
Track Width (standard/wide), in. (mm)
12.6 (320) / 15.8 (400)
Traction Force, lbf (kgf)
9678 (4390)
Traveling Speed: High, mph (kph)
8.6 (13.7)
Traveling Speed: Low, mph (kph)
5.6 (9.0)
